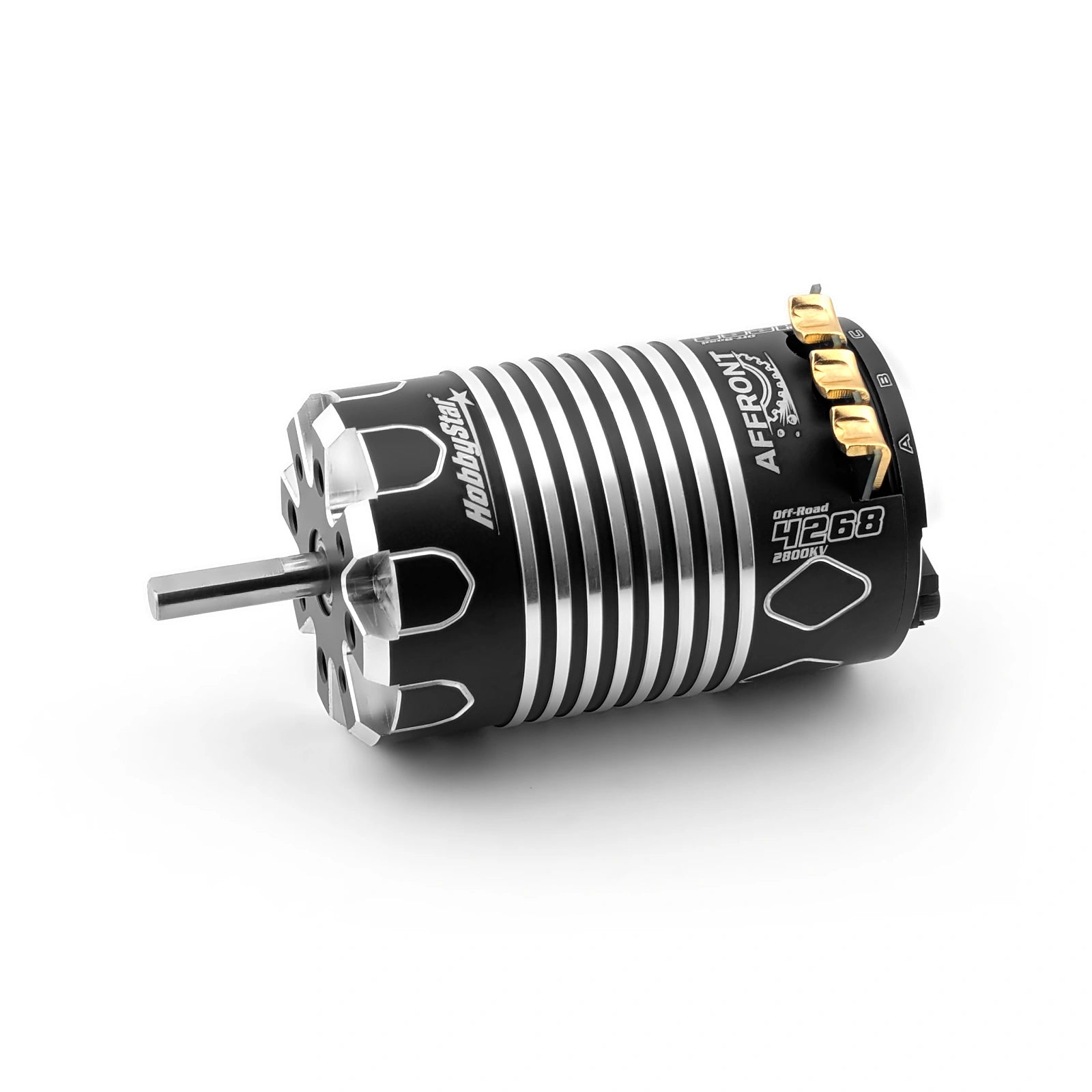

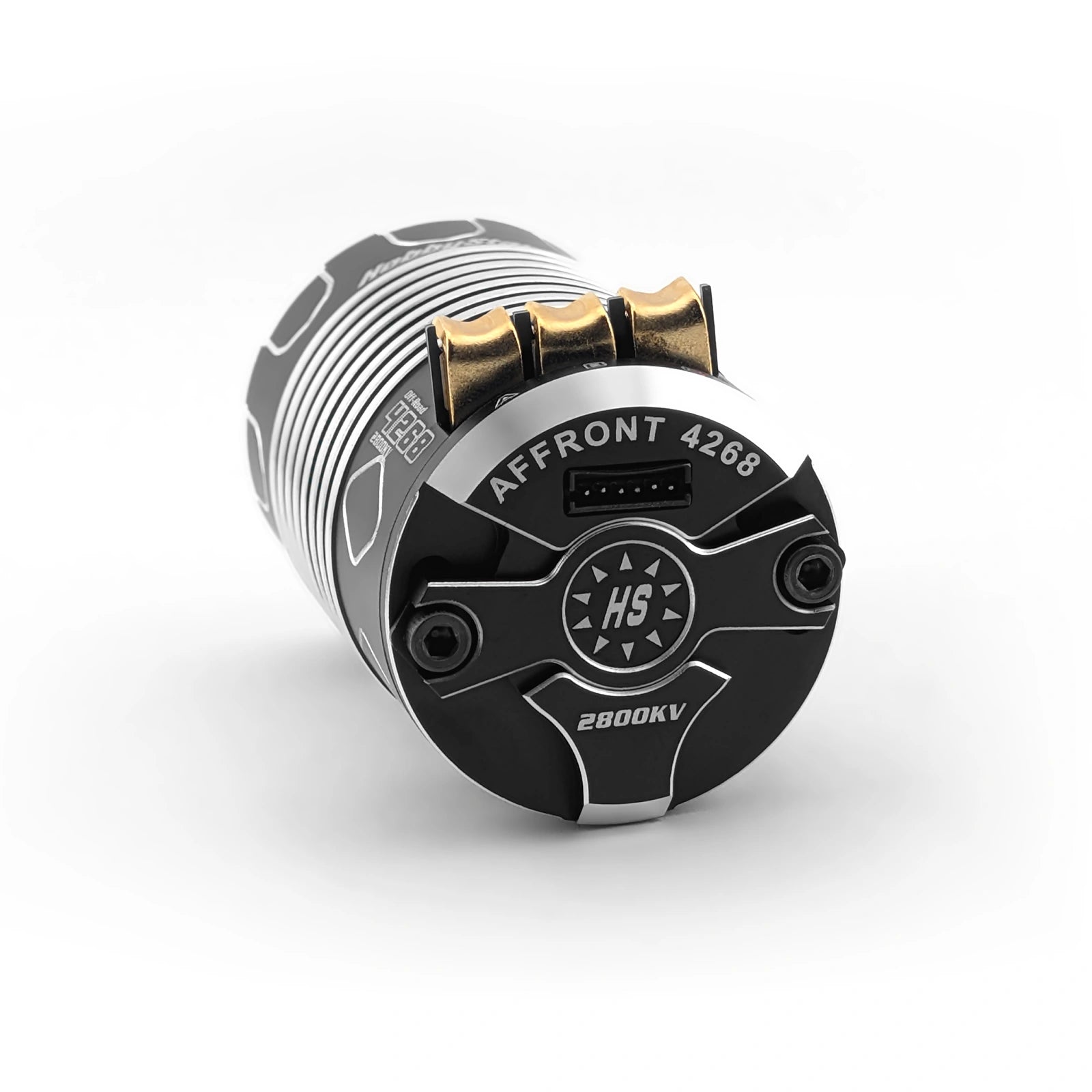

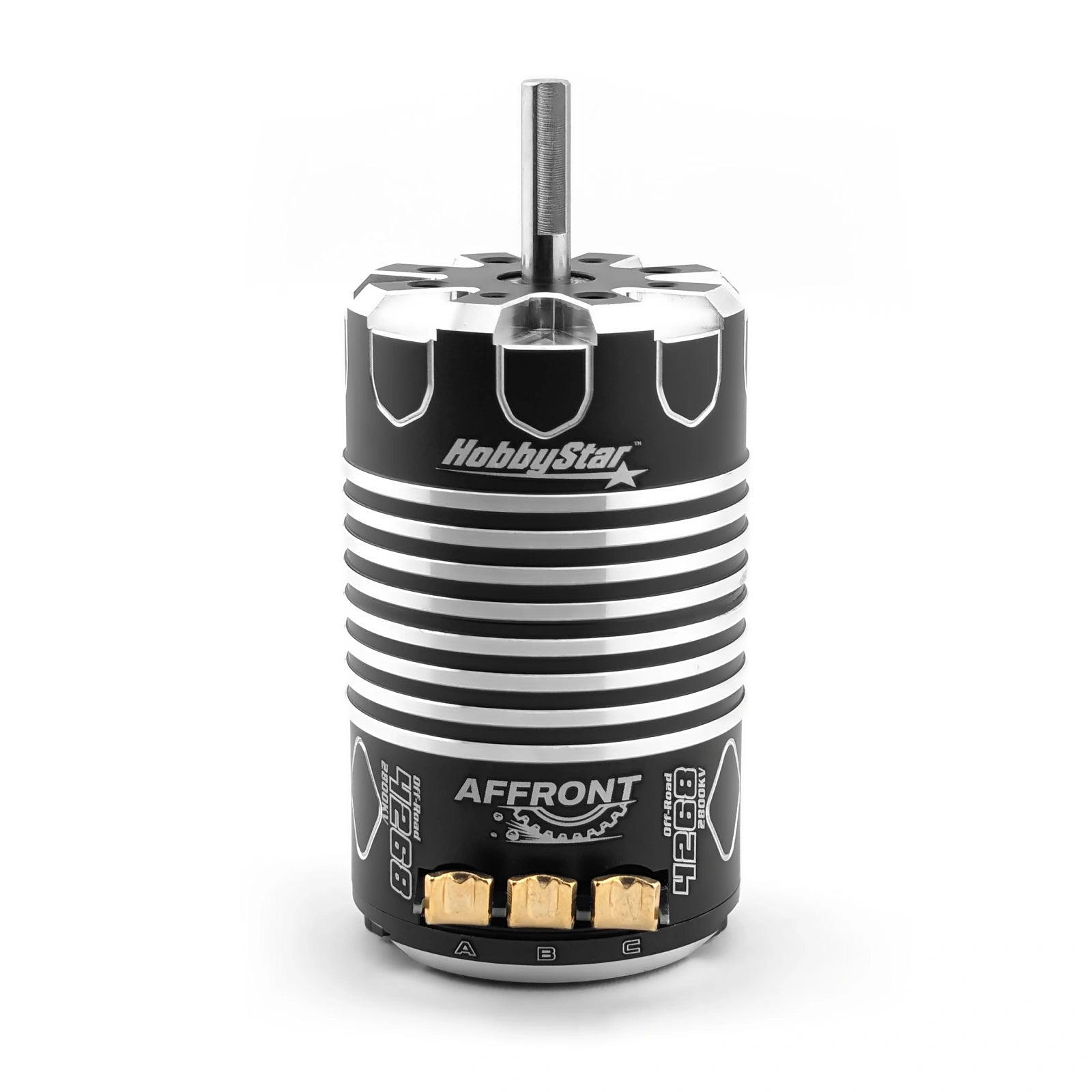

HobbyStar Affront 4268 4-Pole Brushless Sensored Motor For Off-Road 1/8 Scale
The HobbyStar Affront 4268 is for 1/8 off-road buggies that need smooth sensored throttle control without jumping to a longer, heavier can. It is a 4-pole sensored brushless motor in a 68.7mm 4268-size case, with 1900KV, 2100KV, 2350KV, 2600KV, and 2800KV options and a 2400W rating.
The useful bits are all the usual things racers and serious builders actually care about: adjustable timing, a removable/replaceable rotor, 0.2mm stator laminations, high-temperature copper windings, oversized high-speed bearings, and a CNC 6061 T6 aluminum heat-dissipation shell. In plain English, it is built to run efficiently and stay tunable, not merely to look dramatic in the parts bin.
The off-road version uses a sealed can design with splashproof and dustproof protection for normal dirt-track and dusty RC use. It also gives you M3 and M4 mounting holes, a 5mm shaft, and a compact 320g weight. Match the KV to your battery, ESC, gearing, vehicle weight, and class rules; high KV plus optimism is still not a cooling system.
Quick specs:
- Type: Sensored brushless motor
- Recommended scale/use: 1/8 off-road buggy and compatible 1/8 surface RC builds
- Motor size code: 4268
- Available KV: 1900KV, 2100KV, 2350KV, 2600KV, 2800KV
- Max watts: 2400W
- Rotor poles: 4
- Max RPM: 50,000
- Motor size: 40.8mm body / 41.8mm with fins x 68.7mm
- Weight: 320g
- Shaft diameter: 5mm
- Extended shaft length: 19.5mm
- Mounting: M3 and M4 motor mounting holes
- Timing: Adjustable timing system
- Rotor: Removable/replaceable rotor
- Stator: 0.2mm steel laminations
- Windings: High-temperature copper windings
- Can design: CNC 6061 T6 aluminum heat-dissipation shell, sealed splashproof/dustproof off-road design
Specifications for all variants:
| SKU | KV (RPM/Volt) | Max Voltage | Max Amps | Rotor Poles | IO (7.4V) | Resistance | Watts | Max RPM | Length (mm) | Diameter (mm) with fins | Weight (g) | Shaft Diameter (mm) | Shaft Length (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 375-40-519 | 1900 | <26V | 90A | 4 | 3.5A | 0.0114 | 2400W | 50,000 | 68.7 | 40.8 / 41.8 | 320 | 5 | 19.5 |
| 375-40-521 | 2100 | <24V | 97A | 4 | 3.8A | 0.0099 | 2400W | 50,000 | 68.7 | 40.8 / 41.8 | 320 | 5 | 19.5 |
| 375-40-523 | 2350 | <21V | 112A | 4 | 4.0A | 0.0078 | 2400W | 50,000 | 68.7 | 40.8 / 41.8 | 320 | 5 | 19.5 |
| 375-40-526 | 2600 | <19V | 123A | 4 | 5.2A | 0.0065 | 2400W | 50,000 | 68.7 | 40.8 / 41.8 | 320 | 5 | 19.5 |
| 375-40-528 | 2800 | <18V | 130A | 4 | 5.5A | 0.0055 | 2400W | 50,000 | 68.7 | 40.8 / 41.8 | 320 | 5 | 19.5 |
