Excellent performance, specially designed for 1/10 STOCK racing.

Designed to pair with HOBBYWING XR10 Stock Spec G2 ESC

The innovative outer diameter structure of fully exposed stator core maximizes the heat dissipation area and the rear end of the motor is a big opening structure to further improve the heat dissipation effect.

Dual sensor interface design to meet various wiring/layout requirements.

The special copper bar is customized and the spacing of copper bar is widened, which greatly facilitates the operation of soldering wire.

The built-in high precision Hall sensor combined with the high precision and balanced rotor guarantee outstanding linearity of the motor.

The use of high-performance stator core, 220°C high-temperature-resistant enameled wire, high precision and high strength bearings, and copper solder tabs with super current endurance guarantees outstanding

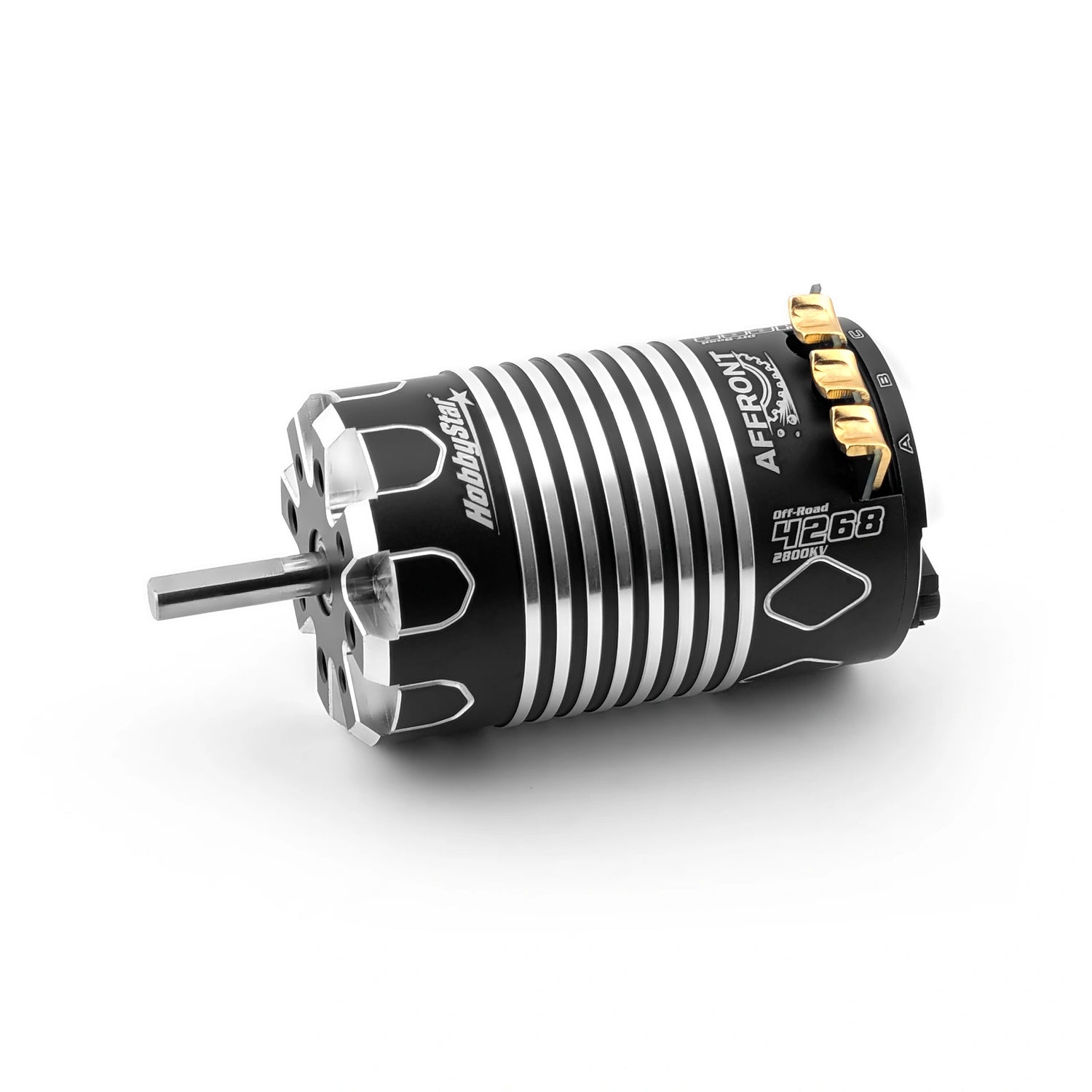

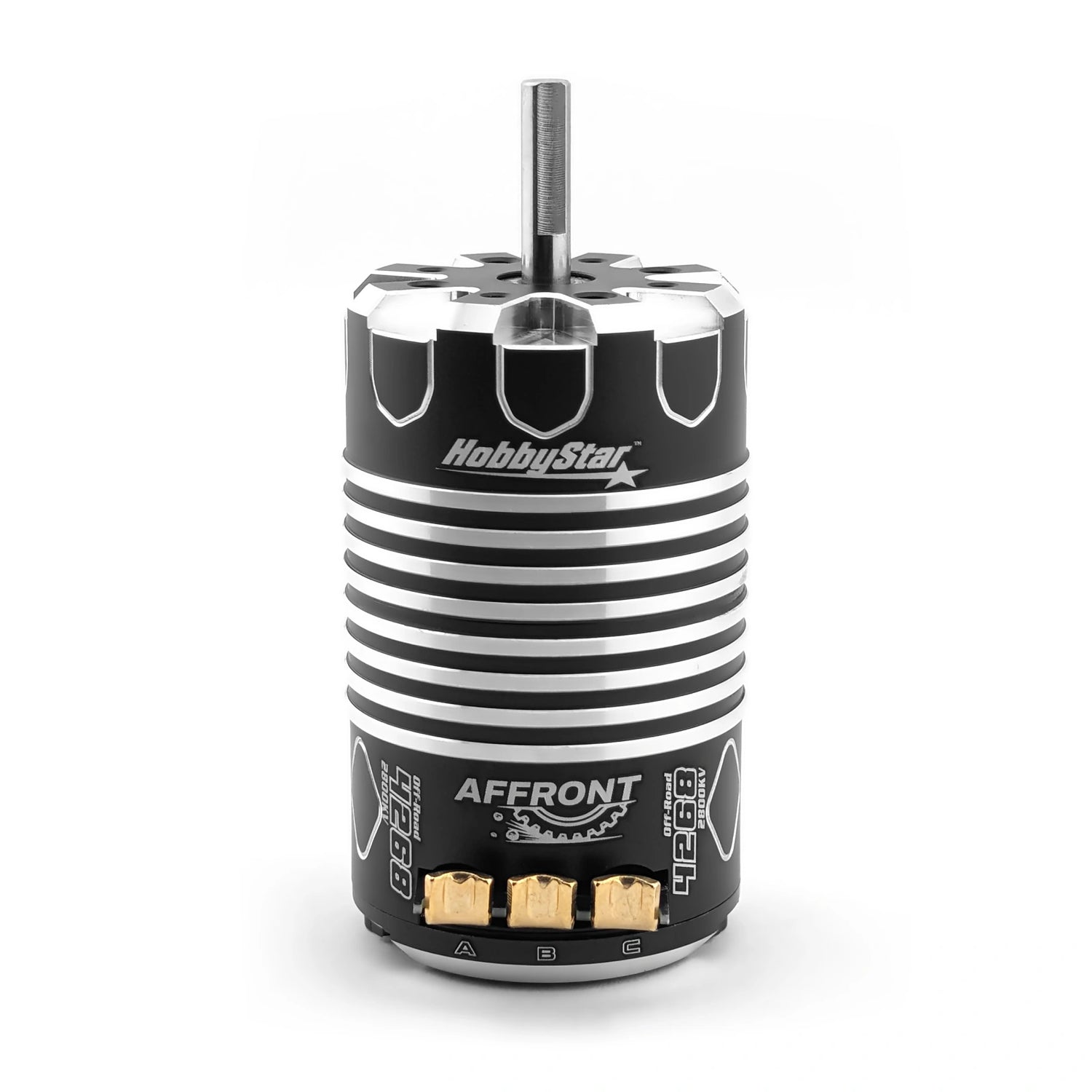

The HobbyStar Affront 4268 is for 1/8 off-road buggies that need smooth sensored throttle control without jumping to a longer, heavier can. It is a 4-pole sensored brushless motor in a 68.7mm 4268-size case, with 1900KV, 2100KV, 2350KV, 2600KV, and 2800KV options and a 2400W rating.

The useful bits are all the usual things racers and serious builders actually care about: adjustable timing, a removable/replaceable rotor, 0.2mm stator laminations, high-temperature copper windings, oversized high-speed bearings, and a CNC 6061 T6 aluminum heat-dissipation shell. In plain English, it is built to run efficiently and stay tunable, not merely to look dramatic in the parts bin.

The off-road version uses a sealed can design with splashproof and dustproof protection for normal dirt-track and dusty RC use. It also gives you M3 and M4 mounting holes, a 5mm shaft, and a compact 320g weight. Match the KV to your battery, ESC, gearing, vehicle weight, and class rules; high KV plus optimism is still not a cooling system.

Quick specs:

• Type: Sensored brushless motor
• Recommended scale/use: 1/8 off-road buggy and compatible 1/8 surface RC builds
• Motor size code: 4268
• Available KV: 1900KV, 2100KV, 2350KV, 2600KV, 2800KV
• Max watts: 2400W
• Rotor poles: 4
• Max RPM: 50,000
• Motor size: 40.8mm body / 41.8mm with fins x 68.7mm
• Weight: 320g
• Shaft diameter: 5mm
• Extended shaft length: 19.5mm
• Mounting: M3 and M4 motor mounting holes
• Timing: Adjustable timing system
• Rotor: Removable/replaceable rotor
• Stator: 0.2mm steel laminations
• Windings: High-temperature copper windings
• Can design: CNC 6061 T6 aluminum heat-dissipation shell, sealed splashproof/dustproof off-road design

When too much is just enough, the HobbyStar 4092 is the motor you are looking for.  At a full 92mm in length this is one of the longest and most powerful motor you can shoehorn into your 1/8 truck for ridiculous power (make sure to measure to see if you have the clearance!). 4-pole design and a 12-slot stator provide unbelievable torque. High-quality features like a beautifully machined 6061 T6 billet-aluminum can, buttery-smooth ABEC5 bearings and a 82mm length make this the ultimate motor for your monster truck or truggy.

Features:

• Brushless, sensorless 4-pole motor
• 12-slot high-torque stator
• CNC machined 6061 T6 billet aluminum heatsink can
• High-purity copper windings maximize efficiency
• High-RPM ABEC5 oversized bearings
• Universal fit, fits all 1/8 brushless cars, multiple mounting holes with M3 and M4 threads
• Precision balanced rotor for smooth operation, reliability and maximum RPM
• Stator-Super Thin (0.2mm) laminations
• Removable/replaceable rotor
• Precision engineered for maximum energy conversion

When a standard 1/8 motor isn't enough, the HobbyStar 4082 brushless, sensorless motor is the ticket for your 1/8 truck for monster horsepower.  4-pole design and a 12-slot stator provide unbelievable torque. High-quality features like a beautifully machined 6061 T6 billet-aluminum can, buttery-smooth ABEC5 bearings and a 82mm length make this the ultimate motor for your monster truck or truggy.

Features:

• Brushless, sensorless 4-pole motor
• 12-slot high-torque stator
• CNC machined 6061 T6 billet aluminum heatsink can
• High-purity copper windings maximize efficiency
• High-RPM ABEC5 oversized bearings
• Universal fit, fits all 1/8 brushless cars, multiple mounting holes with M3 and M4 threads
• Precision balanced rotor for smooth operation, reliability and maximum RPM
• Stator-Super Thin (0.2mm) laminations
• Removable/replaceable rotor
• Precision engineered for maximum energy conversion

The same 1/8 scale powerhouse design as the HobbyStar 4076 sensorless motor, the HobbyStar 4274 adds a sensor to provide silky-smooth operation at all RPM's.  Gold-plated solder tabs feature a concave design to hold solder in place for an easy, clean connection to motor.

With the power to throw your truck around like a toy, the HobbyStar 4274 brushless, sensored motor is the ideal powerplant for to supply your 1/8 scale vehicle with tire-shredding power.  4-pole design and a 12-slot stator provide unbelievable torque. High-quality features like a beautifully machined 6061 T6 billet-aluminum can, buttery-smooth ABEC5 bearings and a 74mm length make this the ultimate motor for your monster truck or truggy.

Features:

• Brushless, sensored 4-pole motor
• 12-slot high-torque stator
• CNC machined 6061 T6 billet aluminum heatsink can
• High-purity copper windings maximize efficiency
• High-RPM ABEC5 oversized bearings
• Universal fit, fits all 1/8 brushless cars, multiple mounting holes with M3 and M4 threads
• Precision balanced rotor for smooth operation, reliability and maximum RPM
• Stator-Super Thin (0.2mm) laminations
• Removable/replaceable rotor
• Precision engineered for maximum energy conversion

The HobbyStar 540 V3 series motors are the next generation of a championship-winning powerplant that continues to push the boundaries.

Along with looking amazing, the all-new can and stator design maximizes cooling efficiency, to raise the bar yet again.  The V3 Spec-winds have shed an incredible 20g of weight, making it a full 40g lighter than the original, V1 design at only 140g.

Underneath the beautiful can lies an all-new sensor board, stronger magnets in the rotor, lightened stators, and a beefed-up endplate.  Gold-plated solder tabs and titanium-nitride coated aluminum bolts keep it all together while keeping things light.

Available in SPEC and MOD versions, as well as an all-new MOD-ET version which comes with a high-torque rotor and stator optimized for drag-racing.

Features:

• Re-designed motor can for more efficient cooling
• Increased strength neodymium rotor-magnets
• New stator design is lighter and more efficient
• Titanium-nitride coated aluminum can screws
• Gold-plated solder tabs
• Weighs 20g less than V2 motors
• Available "ET" version for drag-racing with high-torque rotor & ceramic bearings

A scaled-down version of the the race-proven 540 race motors, the HobbyStar 390 V2 motors bring championship-winning design to a smaller package for your small scale rig.

High-quality Japanese aluminum is used for the cases and Japanese NSK bearings keep things spinning with as little resistance as possible.

Gold plated solder tabs and an included sensor cable round off this ideal small-scale motor.

A scaled-down version of the the race-proven 540 race motors, the HobbyStar 380 V2 motors bring championship-winning design to a smaller package for your small scale rig.

High-quality Japanese aluminum is used for the cases and Japanese NSK bearings keep things spinning with as little resistance as possible. Gold plated solder tabs and an included sensor cable round off this ideal small-scale motor.

With the power to throw your truck around like a toy, the HobbyStar 4076 brushless, sensorless motor is the ideal powerplant for to supply your 1/8 scale vehicle with tire-shredding power.  4-pole design and a 12-slot stator provide unbelievable torque. High-quality features like a beautifully machined 6061 T6 billet-aluminum can, buttery-smooth ABEC5 bearings and a 76mm length make this the ultimate motor for your monster truck or truggy.

Features:

• Brushless, sensorless 4-pole motor
• 12-slot high-torque stator
• CNC machined 6061 T6 billet aluminum heatsink can
• High-purity copper windings maximize efficiency
• High-RPM ABEC5 oversized bearings
• Universal fit, fits all 1/8 brushless cars, multiple mounting holes with M3 and M4 threads
• Precision balanced rotor for smooth operation, reliability and maximum RPM
• Stator-Super Thin (0.2mm) laminations
• Removable/replaceable rotor
• Precision engineered for maximum energy conversion

A powerhouse motor for your 1/8 scale buggy, the HobbyStar 4068 brushless, sensorless motor is the ideal powerplant for to supply your 1/8 scale vehicle with tire-shredding power.  4-pole design and a 12-slot stator provide unbelievable torque. High-quality features like a beautifully machined 6061 T6 billet-aluminum can, buttery-smooth ABEC5 bearings and a 68mm length make this the ultimate motor for your 1/8 buggy.

Features:

• Brushless, sensorless 4-pole motor
• 12-slot high-torque stator
• CNC machined 6061 T6 billet aluminum heatsink can
• High-purity copper windings maximize efficiency
• High-RPM ABEC5 oversized bearings
• Universal fit, fits all 1/8 brushless cars, multiple mounting holes with M3 and M4 threads
• Precision balanced rotor for smooth operation, reliability and maximum RPM
• Stator-Super Thin (0.2mm) laminations
• Removable/replaceable rotor
• Precision engineered for maximum energy conversion

The HobbyStar 540 V2 motor is all new from the ground up, the result of refining an already proven design.  HobbyStar motors are known for being one of the smoothest powerplants on the track, and the V2 takes that buttery-smooth operation to the next level with an updated sensor board that even incorporates dual ports for the ultimate in flexibility.  Every component of the V2 motors was evaluated, even the case screws have been upgraded to titanium-nitride coated aluminum units (an industry first). The result is a motor that is lighter, smoother and most importantly even more powerful than ever.

NOTE: 5.5T and below motors are VERY HIGH KV, and are not meant for extended use on 2S as they will easily overheat.  These are intended for drag-race use only where they will see short bursts of use.

 Features:

• Re-designed motor can for more efficient cooling
• All-new rotor with stronger neodymium magnets
• New stator design is more efficient and yields higher average KV ratings
• Titanium-nitride coated aluminum can screws
• Gold-plated solder tabs
• All-new sensor board with dual sensor ports
• Weighs 20g less than V1 motors

Designed with 1/10 scale competition in mind, the HobbyStar 540 brushless, sensored motor packs all the same features as our 540 Competition 1/10 motor but without adjustable can timing for those racers who do not need it. All the other features remain, like precision high RPM ABEC5 bearings and precision engineering for maximum energy conversion to give you the edge you need to win.  Available in a wide variety of turns in both SPEC and MOD versions, all housed in a beautifully machined T6 billet aluminum housing for the ultimate in strength and heat dissipation.

Features:

• High RPM precision bearings
• CNC machined billet T6 aluminum heatsink can
• High-purity copper windings maximize conductivity
• High-power solder tabs
• Powerful sintered neodymium magnets
• Precision engineered for maximum energy conversion
• Available in both SPEC and MOD versions
