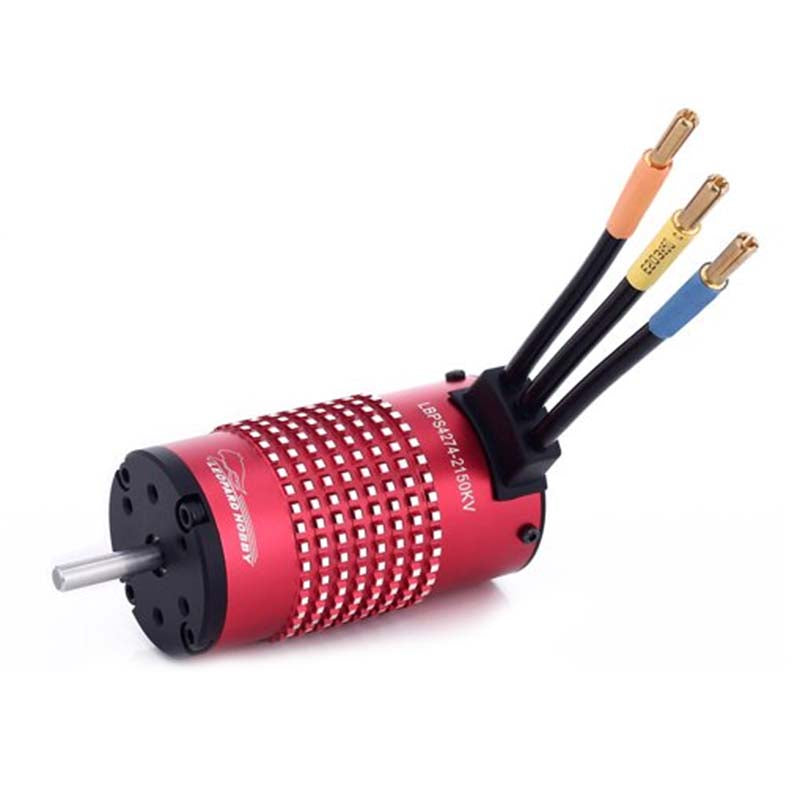

Leopard 4274 4-Pole Brushless Sensored Motor For 1/8 Scale
$99.99
Unit price perThe Leopard 4274 is an all new motor from Leopard for 1/8 monster trucks and truggies. This torque monster features sensored operation for smooth, reliable power delivery.
Leopard motors are built using the highest grade components for outstanding performance and long life. The latest generation 4-pole rotors provide massive torque, and are Kevlar wrapped to ensure the magnets stay put at all RPM’s. All components are precision machined, balanced and hand-built to guarantee quality, and with an extensive product line including many sizes you just won’t find from other manufacturers you are sure to find a Leopard motor to fit your application.
Features:
- Precision machined aluminum housing
- Kevlar wrapped, 4-pole rotor
- Imported high-speed Japanese bearings
- Hand wound stator, using high-purity/high-temperature copper wire
- Excellent heat dissipation
$99.99
Unit price perSpecifications for all variants:
| Max Amps | LiPo Cells | KV(RPM/Volt) | Resistance | No-Load Current (7.4V) | Diameter (mm) | Mounting Hole Depth (mm) | Shaft Length (mm) | Shaft Diameter (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|
| 86A | 25.2 | 1645 | 0.0122 | 2.3A | 42x74 | 7 | 20 | 5.0 | 374 |
| 105A | 25.2 | 1800 | 0.0097 | 2.5A | 42x74 | 7 | 20 | 5.0 | 374 |
| 120A | 20 | 2150 | 0.0084 | 2.8A | 42x74 | 7 | 20 | 5.0 | 374 |
