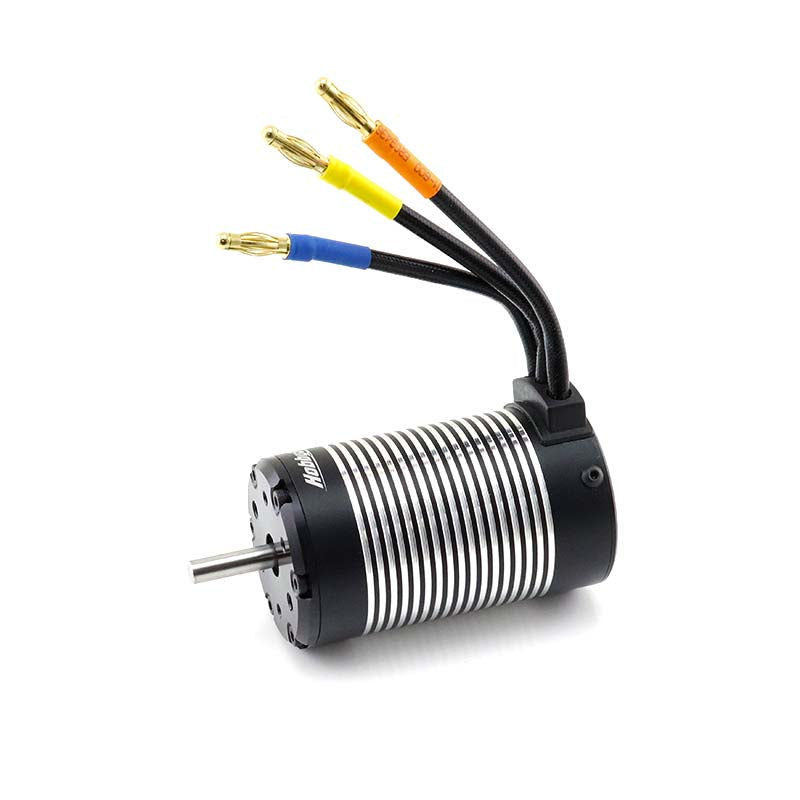

HobbyStar 4068 4-Pole Waterproof Brushless Sensorless Motor
With a waterproof design featuring recessed cooling fins for added clearance, the HobbyStar 4068 4-pole motor is a potent powerhouse for 1/8 buggies. Features the same 4-pole design and a 12-slot stator from the standard 4068 motor in a lighter-weight can. Pre-soldered 4.0mm bullet terminals to make installation a snap.
Features:
- Brushless, sensorless 4-pole motor
- Waterproof design
- 12-slot high-torque stator
- CNC machined 6061 T6 billet aluminum heatsink can
- High-purity copper windings maximize efficiency
- High-RPM ABEC5 oversized bearings
- Multiple mounting holes with M3 and M4 threads
- Precision balanced rotor for smooth operation, reliability and maximum RPM
- Stator-Super Thin (0.2mm) laminations
- Precision engineered for maximum energy conversion
Voltage recommendations in the table below are guidelines for the voltage you can safely run. It is still critical that the user monitor motor temps and adjust gearing if necessary, any motor can overheat to the point of destruction if over-geared even when running at or below the rated voltage.
Specifications for all variants:
| Turns | KV (RPM/Volt) | Max Voltage | Max Amps | Rotor Poles | IO | Resistance | Watts | Max RPM | Length (mm) | Diameter (mm) | Weight (g) | Shaft Diameter (mm) | Shaft Length (mm) | Connectors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3Y | 1700 | 27V | 82A | 4 | 1.2A | 0.0148 | 2400 | 50,000 | 68 | 40 | 305 | 5 | 17 | 4.0mm gold |
| 3Y | 1900 | 23V | 95A | 4 | 1.9A | 0.0104 | 2400 | 50,000 | 68 | 40 | 305 | 5 | 17 | 4.0mm gold |
| 5D | 2050 | 21V | 105A | 4 | 2.3A | 0.0095 | 2400 | 50,000 | 68 | 40 | 305 | 5 | 17 | 4.0mm gold |
| 2Y | 2650 | 18V | 122A | 4 | 2.6A | 0.0062 | 2400 | 50,000 | 68 | 40 | 305 | 5 | 17 | 4.0mm gold |
