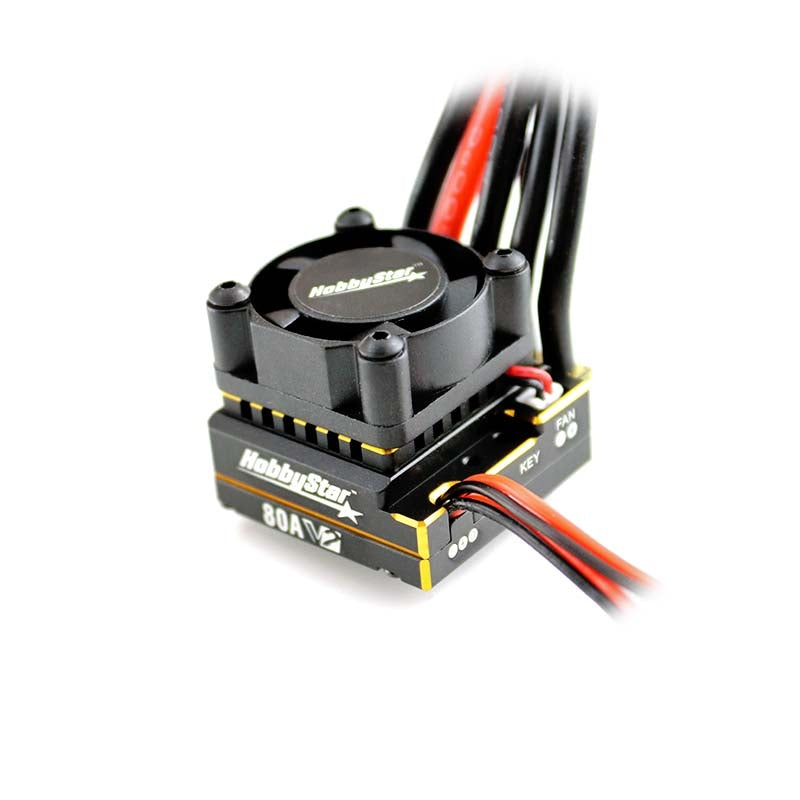

HobbyStar TS80A SENSORED ESC For 380/390 Motors

Small RC cars deserve better than electronics that act brave for three laps and then start reconsidering their life choices. The HobbyStar TS80A is a compact 80A sensored brushless ESC built for 380/390 motor setups, giving 1/14 and small-scale race cars the smooth throttle control and tuning range they need without stuffing a giant 1/8-scale brick into the chassis.

It runs on 2S LiPo power with an 80A continuous and 160A peak current rating, plus a built-in 3A/6V BEC for clean receiver and servo power. The aluminum case, machined heatsink, and high-speed cooling fan help keep temperatures under control, which is useful when the car is small, the gearing is optimistic, and the driver has opinions.

The TS80A supports sensored 380/390/540 brushless motors, with motor limits of 10.5T and higher turn-count for 380/390 motors and 13.5T and higher turn-count for 540 motors. It includes an XT60 battery connector installed, factory preset Forward/Brake operation, programmable reverse, boost/turbo timing, blinky mode, and setup through an optional LED program card.

All the features of a race ESC in a smaller size for small-scale cars using 380/390 motors.

Features:

• Efficient heat dissipating system
• High performance cooling fan (23,000RPM @7.2v)
• Aluminum casing with machined heatsink
• Built-in Super BEC
• Programable with optional LED Program Card
• Turbo/Boost timing and blinky modes

* Comes with XT60 Battery Connector Installed

Specifications:

• Forward/Brake/Reverse: Yes (Factory preset at Forward/Brake)
• Dimensions: 29.50L x 29.52W x 24H mm (with Fan)
• Weight: 62g (with wires)
• Voltage Input: 6v-11v (2s LiPo)
• Peak Current: 160A
• Continuous Current: 80A
• Motor Limit: Over 13.5t (540), Over 10.5t (380/390)
• Motor Type: Sensored 380/390/540 Brushless Motor
• BEC: 3A/6V
• Multi Protection System: Yes
