HobbyStar 540 Waterproof Brushed Crawler Motor, 5-Slot
$19.99
Unit price perHobbyStar 5-slot brushed crawler motors feature an innovative "skewed stator" design that delivers a smooth powerband for excellent control when driving on steep and rocky terrain. Dual-ball bearings provide peak performance and reliability, while adjustable motor timing allows you to rotate the motor can to dial in for your application. Easy to maintain waterproof design, just dry them out and give them some oil after a wet or muddy run and they'll be ready for another round. If you are looking for a powerful, reliable, economical and versatile powerplant for your crawler look no further!
Features:

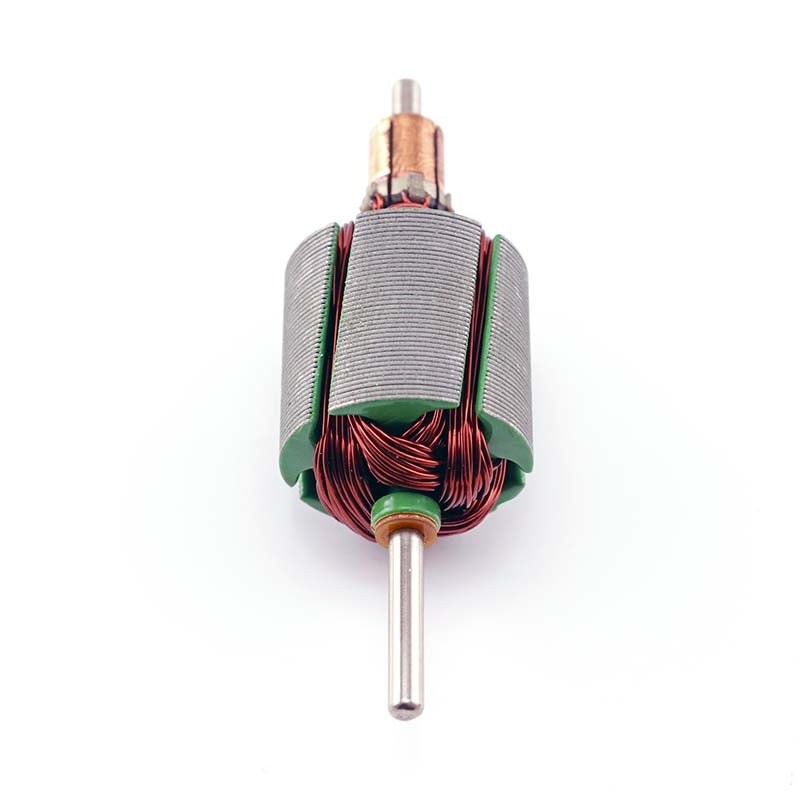

- 5-slot armature for ultra-smooth operation
- Adjustable timing
- Waterproof
- Available in a variety of turns
- Pre-soldered leads with bullet plugs
- Dual ball-bearings
- Rebuildable
Specifications for all variants:
| Turns | Voltage | No-Load RPM | No-Load IO | Current | Length (mm) | Diameter (mm) | Shaft Length (mm) | Shaft Diameter (mm) | Weight (g) | Connectors (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 11T | 1S-3S | 19800+/- 10% | 1.85-2.65A | 88-125A | 53 | 36 | 12 | 3.175 | 175 | 3.5 |
| 13T | 1S-4S | 16700+/- 10% | 1.3-1.9A | 62-96A | 53 | 36 | 12 | 3.175 | 175 | 3.5 |
| 16T | 1S-4S | 13700+/- 10% | 1.06-1.5A | 53-75A | 53 | 36 | 12 | 3.175 | 175 | 3.5 |
| 20T | 1S-4S | 11700+/- 10% | 0.80-1.12A | 37-52A | 53 | 36 | 12 | 3.175 | 175 | 3.5 |
