SKYRC Omni XT90 Power Distribution Hub

The SkyRC Omni XT90 Power Distribution Hub is a compact, high-current DC power splitter built to clean up your pit bench. Feed it from a single XT90 source and power multiple RC devices and chargers at the same time - no adapter mess, no daisy chains. It is designed for high-load setups with an 8V to 36V DC input range and up to 55A max input current.

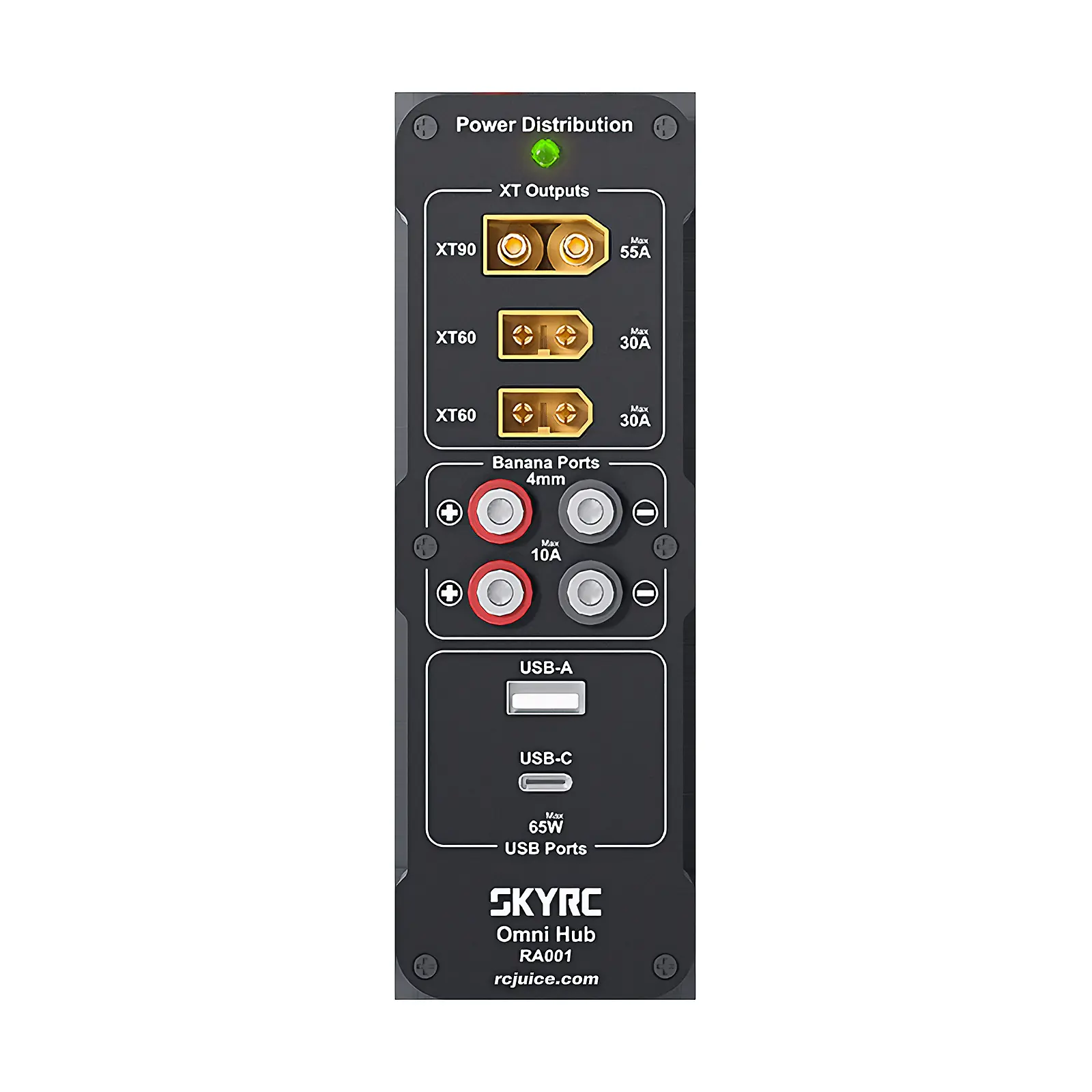

Omni combines RC-standard outputs with modern USB fast charging. You get one XT90 output, two XT60 outputs, dual 4mm banana pairs, plus USB-C and USB-A for phones, tablets, radios, and accessories. USB-C supports up to 65W fast charging, and USB-A supports up to 18W. When USB-C and USB-A are used at the same time, the hub limits USB output to 5V (up to 18W total) for stable shared power.

Specs

• Model: Omni Hub - SK-600163
• Input connector: XT90
• Input voltage: 8V to 36V DC
• Max input current: 55A
• XT outputs: XT90 x1 up to 55A, XT60 x2 up to 30A each
• Banana outputs: 4mm x2 pairs up to 10A
• USB outputs: USB-C up to 65W, USB-A up to 18W
• USB shared mode: USB-C + USB-A simultaneously - 5V output, up to 18W total
• Size: 151x50x29.5mm
• Weight: about 310g

Note: SkyRC references "up to 2000W" stable power distribution when paired with suitable input power. With SkyRC eFUEL PSU2000 AC 220V to 240V version, the stated maximum output power is 1980W. Power supply is sold separately.
