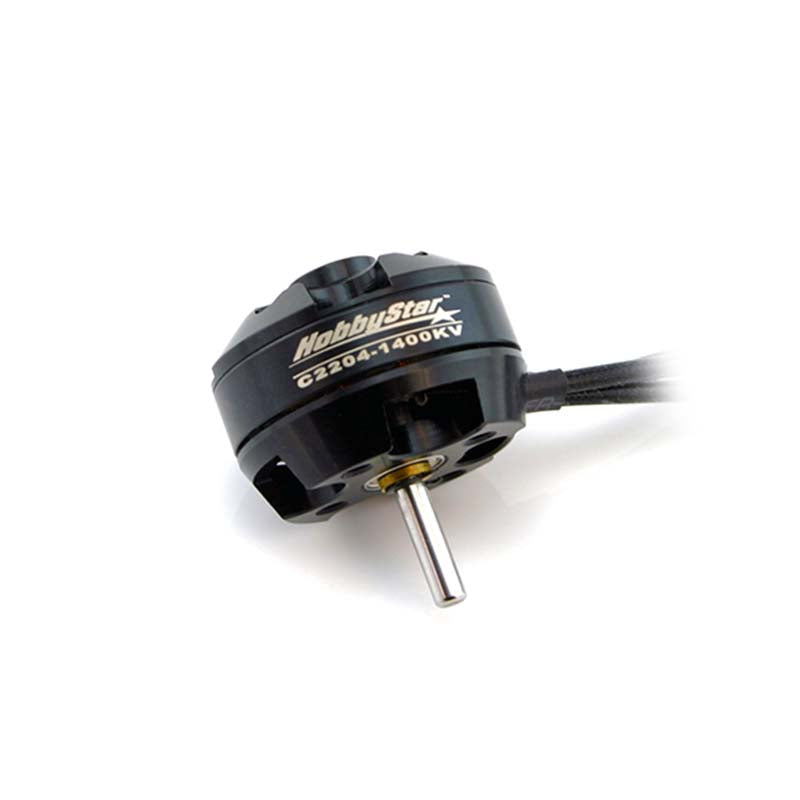

HobbyStar 2204 (2822) Brushless Outrunner Motor



HobbyStar brushless outrunner motors are built using high-quality components and precision balanced to ensure a smooth, reliable and powerful motor for your aircraft. Motor shafts can be reversed on all motors, and a hardware kit with mounting plate, prop adapter and hardware kit are included with all motors.


  • 14-pole, 12-slot high-torque design
  • CNC machined 6061 T6 billet aluminum housing
  • High-purity copper windings for maximum efficiency
  • High RPM ABEC 5 oversized bearings
  • Precision balanced rotor
  • Super-thin stator laminations (0.2mm)
  • Flexible silicone leads with pre-installed gold-plated connectors


        Specifications for all variants:

        KV (RPM/Volt) Model Watts Cells Max Amps Rotor Poles IO Resistance Motor Size Stator Size Weight Propeller Shaft Diameter (mm) Connectors
        1200 2204-27 140 2-3S 11A 14 0.4A 0.368 28x22mm 2204 30g 8*5/8*6/7*5 3mm 3.5mm
        1400 2204-27 160 2-3S 13A 14 0.5A 0.307 28x22mm 2204 30g 7.5*3.5/8*4/9*5 3mm 3.5mm
