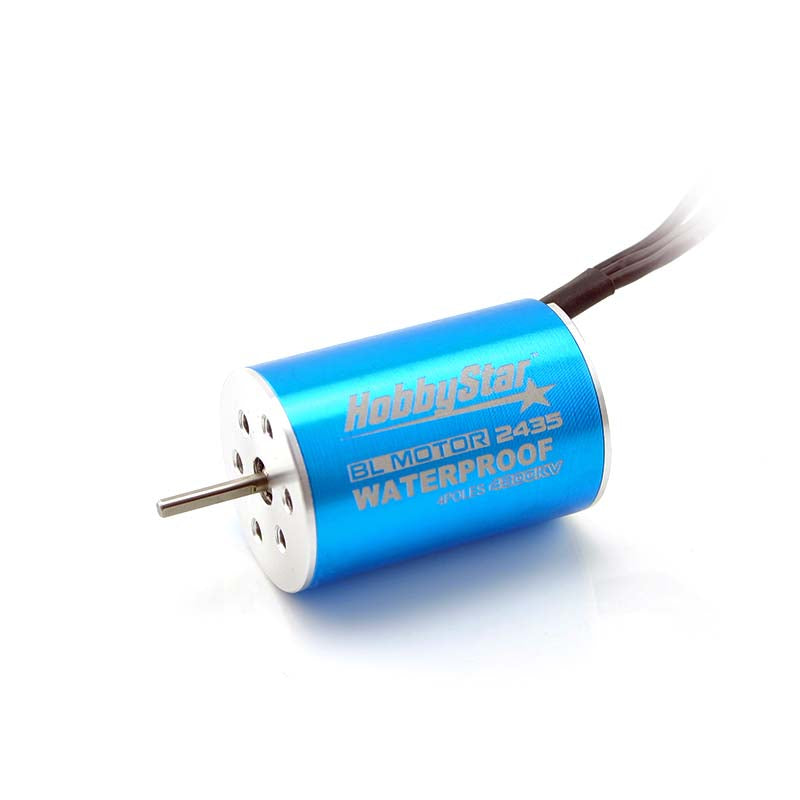

HobbyStar 2435 4-Pole Waterproof Brushless Sensorless Motor
The perfect powerplant for your mini RC, the HobbyStar 2435 motor is built with only high-quality components and housed in a CNC machined aluminum housing. Balanced for smooth operation and waterproof for use in a wide variety of applications this is a fantastic motor for 1/14 to 1/18 scale cars.
Features:
- 4 poles, 12 slots high torque motor design
- High temperature resistant coil
- High-quality aluminum alloy for maximum energy conversion
- Precision balanced rotor provides smooth, reliable operation and maximum RPM
- High purity copper windings for maximizing efficiency
- Suitable for 1/14 or 1/16 car
Specifications for all variants:
| Turns | Watts | Max Voltage | Max Amps | Rotor Poles | IO | Resistance | KV (RPM/Volt) | Max RPM | Length (mm) | Diameter (mm) | Weight (g) | Shaft Diameter (mm) | Shaft Length (mm) | Connectors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.5Y | 300 | 3S | 22A | 4 | 1.7A | 0.012 | 4500 | 60,000 | 35 | 24 | 63 | 2 | 12 | 3.5mm gold |
| 4Y | 300 | 2S | 24A | 4 | 2.0A | 0.006 | 4800 | 60,000 | 35 | 24 | 63 | 2 | 12 | 3.5mm gold |
| 3Y | 300 | 2S | 32A | 4 | 2.5A | 0.003 | 6100 | 60,000 | 35 | 24 | 63 | 2 | 12 | 3.5mm gold |
